Alpha Series (A7, A9.2, M9, W9)
Alpha Series Electrical Systems
Overview
Welcome to the comprehensive technical documentation for Alpha Series electrical components. This guide provides detailed information about installation, maintenance, and troubleshooting for both Tiller and Tank steering configurations.
- Installation Guides
- Component Lists
- Maintenance Videos
- Exploded Views
- Parts Ordering
Velomobile

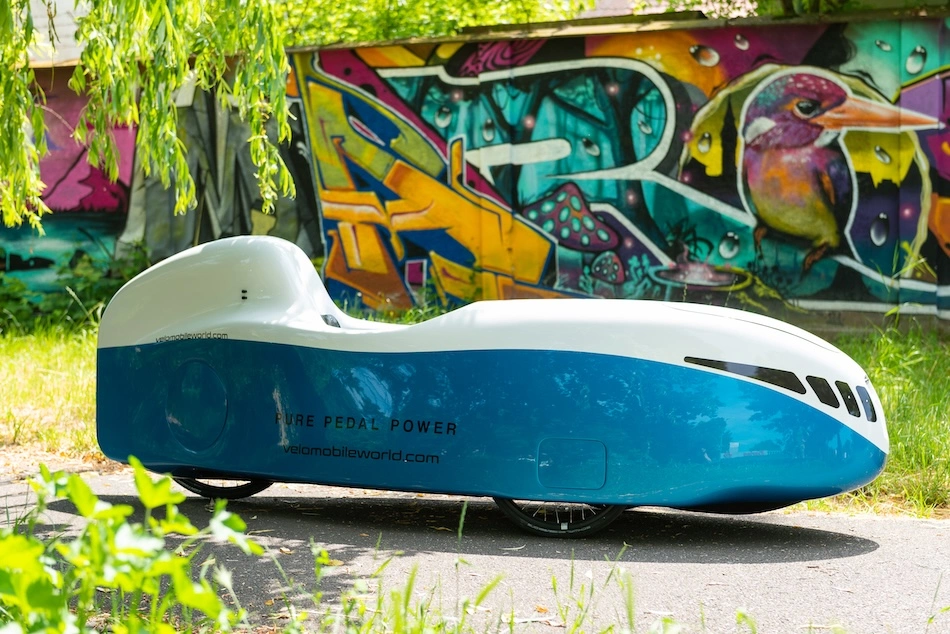

The Alpha W9s is here!
Originally conceived as an even slimmer version of the W9 for smaller and therefore less powerful riders, it even offers space for riders up to 1.83 m tall. This makes it a racing vehicle suitable for everyday use and the spearhead of the Alpha 9 Series, converting low power into high speed.
Tiller Steering Configuration
Tank Steering Configuration
Maintenance videos
Kellermann Taillight Thermal Protection Installation
Learn how to install a thermal protection resistor for your Kellermann taillights. This modification prevents thermal overload issues reported in some Alpha 7 models.
Key Information:
- Difficulty Level: Easy
- Duration: Approximately 30 minutes
- Tools Required:
- Side cutter
- Insulated pliers
- Utility knife
- Heat shrink tubing
- Soldering iron
- Heat gun or lighter
- Textile tape
- 10W resistor
- Solder wire
Safety Notice: Always disconnect the main power switch and battery before performing any electrical modifications.
Video tutorial DE
Video tutorial EN
Light options

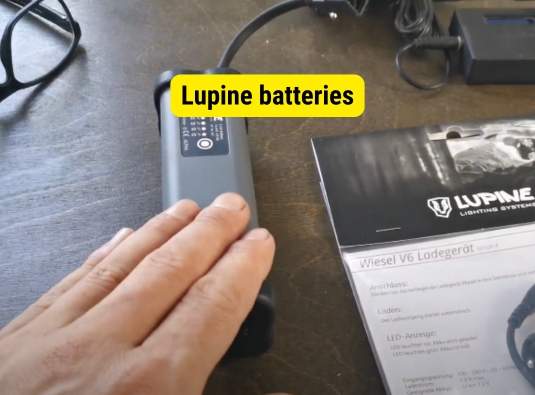

Lupine batteries
Component Lists

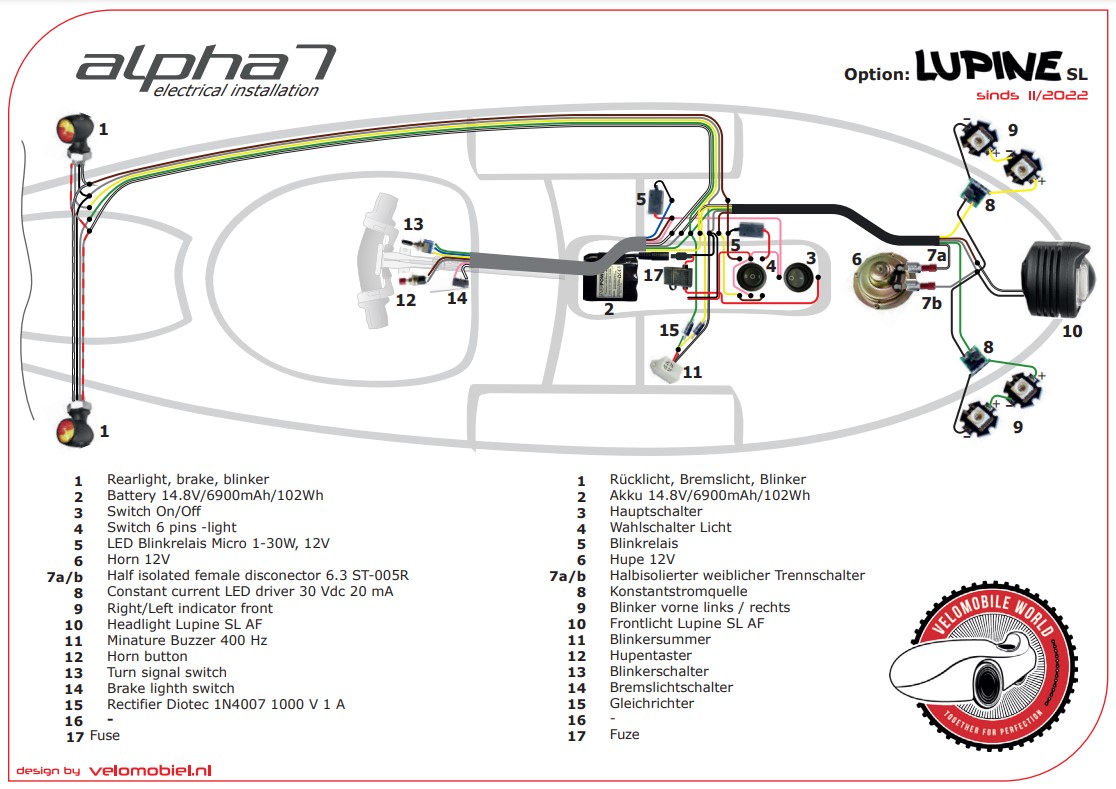

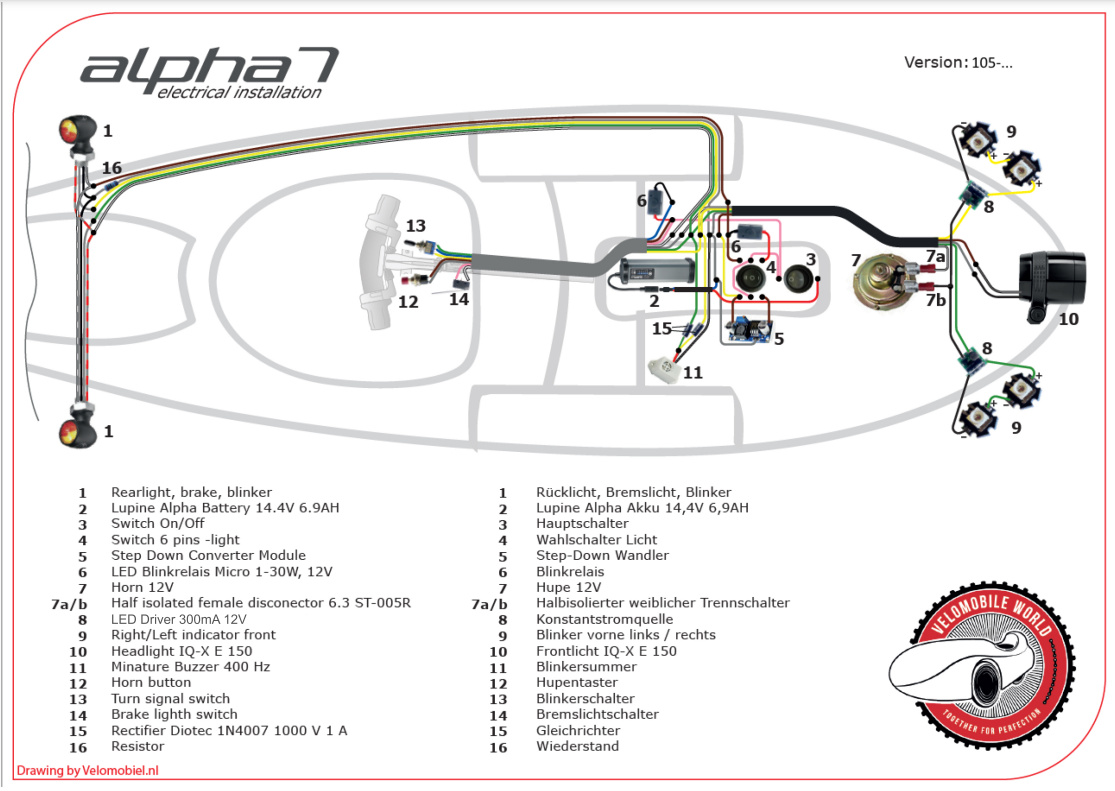

Alpha Electrical with Lupine Configuration
1) REARLIGHT, BRAKE, BLINKER >>>
2) BATTERY >>>
3) SWITCH ON/OFF >>>
4) SWITCH 6 PINS -LIGHT >>>
5) LED BLINKRELAIS MICRO 1-30W, 12V >>>
6) HORN 12V >>>
7) HALF ISOLATED FEMALE DISCONECTOR 6.3 ST-005R >>>
8) CONSTANT CURRENT LED DRIVER 30 VDC 20 MA >>>
9) RIGHT/LEFT INDICATOR FRONT >>>
10) HEADLIGHT LUPINE SL AF >>>
11) MINATURE BUZZER 400 HZ >>>
12) HORN BUTTON >>>
13) TURN SIGNAL SWITCH >>>
14) BRAKE LIGHT SWITCH >>>
15) RECTIFIER DIOTEC 1N4007 1000 V 1 A >>>
16) FUSE HOLDER >>>
17) FUSE >>>
18) CABLE 5 WIRES >>>
19) CABLE 7 WIRES >>>
20) PIN ENCLOSURE >>>
21) CRIMP >>>
22) RUBBER COATED CABLE >>>

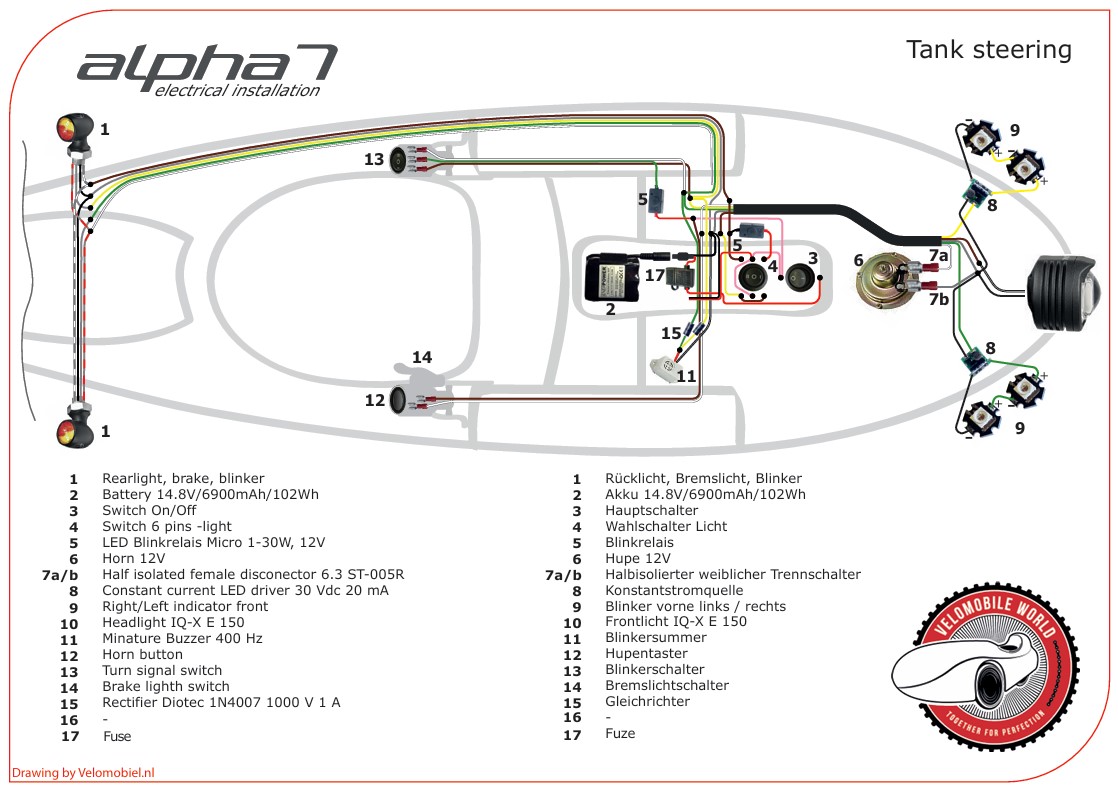

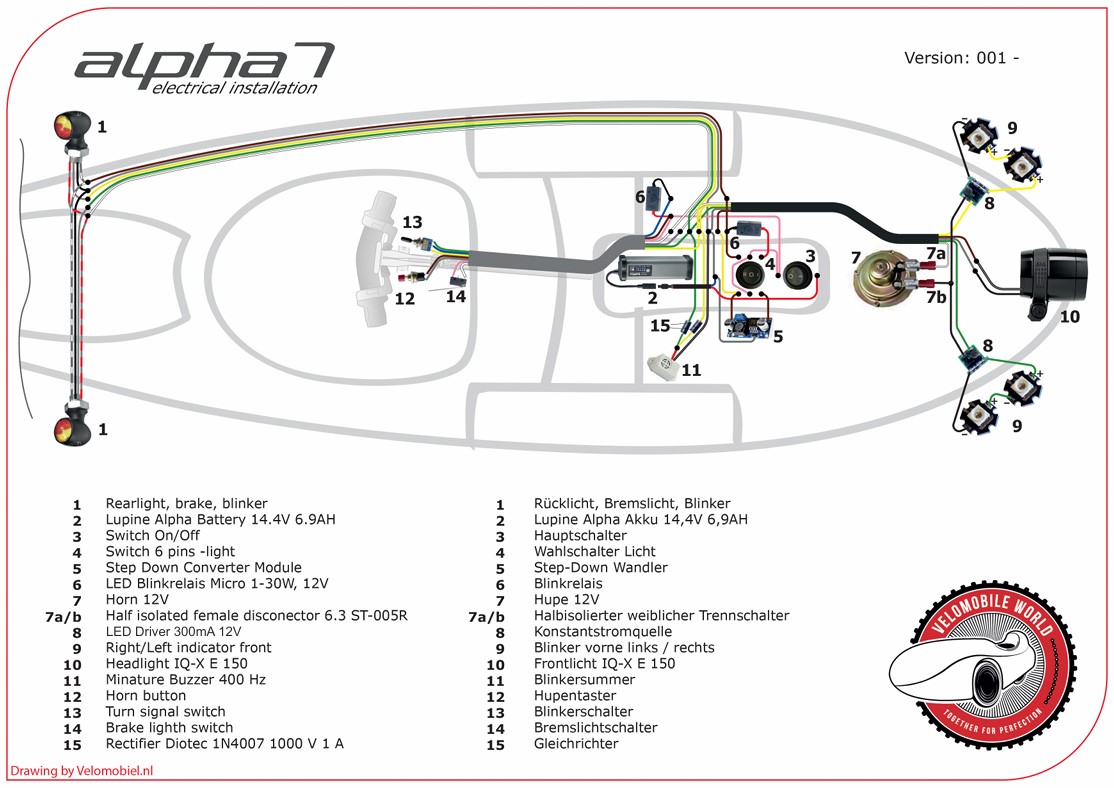

Alpha Electrical with Tank Steering
1) REARLIGHT, BRAKE, BLINKER >>>
2) BATTERY >>>
3) SWITCH ON/OFF >>>
4) SWITCH 6 PINS -LIGHT >>>
5) LED BLINKRELAIS MICRO 1-30W, 12V >>>
6) HORN 12V >>>
7) HALF ISOLATED FEMALE DISCONECTOR 6.3 ST-005R >>>
8) CONSTANT CURRENT LED DRIVER 30 VDC 20 MA >>>
9) RIGHT/LEFT INDICATOR FRONT >>>
10) HEADLIGHT IQ-X >>>
11) MINATURE BUZZER 400 HZ >>>
12) HORN BUTTON >>>
13) TURN SIGNAL SWITCH >>>
14) BRAKE LIGHT SWITCH >>>
15) RECTIFIER DIOTEC 1N4007 1000 V 1 A >>>
16) FUSE HOLDER >>>
17) FUSE >>>
18) CABLE 5 WIRES >>>
19) CABLE 7 WIRES >>>
20) PIN ENCLOSURE >>>
21) CRIMP >>>
22) RUBBER COATED CABLE >>>
Parts Ordering
Authorized Dealers
Find your nearest authorized dealer through our Dealer Locator. Our authorized dealers stock genuine Alpha Series components and can provide expert installation assistance.
Direct Parts Ordering
Each component in the lists above includes a direct ordering link. Click the component name to view detailed specifications and ordering information.
Technical specifications and maintenance procedures are subject to updates. Always refer to the latest documentation for current information.
Need assistance? Contact us at sales@velomobileworld.com
