Alpha Series (A7, A9.2, M9, W9)
Alpha Series Front brakes
Overview
Here you can find technical support information for Alpha Series “Front brakes” parts. On this page you can see descriptions, exploded views, videos & more. If you have questions do not hesitate to contact us, we would like to help you.
- Maintenance Videos
- Maintenance Steps
- Exploded Views
- Safety Notes
- Components
- Parts Ordering
Velomobile
The Alpha W9s is here!
Originally conceived as an even slimmer version of the W9 for smaller and therefore less powerful riders, it even offers space for riders up to 1.83 m tall. This makes it a racing vehicle suitable for everyday use and the spearhead of the Alpha 9 Series, converting low power into high speed.
Videos
In this section we will add videos that can help you fixing various malfunctions for “Front brakes” zone, maintenance videos or other kind of info that can make your velomobile experience great.
Learn the essential maintenance procedures for your Alpha Series front brakes, including cleaning, grinding, and proper lubrication techniques.
Front Brake Maintenance Tutorial
Key Information:
- Difficulty Level: Moderate
- Tools Required:
- Brake grinding tool (available from Velomobile-Nord.de)
- Small screwdriver
- Basic hand tools
- Clean workspace
Maintenance Steps:
- Brake Surface Maintenance
- Position the velomobile for stability
- Use the specialized grinding tool on brake surfaces
- Keep brake surfaces clean and free from grease
- Can be performed without professional tools
- Axle Maintenance
- Components needed:
- Stainless steel lock washers (stern washers)
- Copper grease or appropriate lubricant
- Teflon spray (optional)
- Components needed:
- Lock Washer Replacement
- Important: Always use new lock washers
- Never reuse old lock washers
- Must be stainless steel to prevent rust
- Follow proper installation sequence:
- Remove old washers
- Clean axle thoroughly
- Apply appropriate lubricant
- Install new washers
- Assembly Tips
- Note the short and long sides for proper alignment
- Remove any grease from fingers before handling brake components
- Ensure proper spring tension
- Verify all components are securely fastened

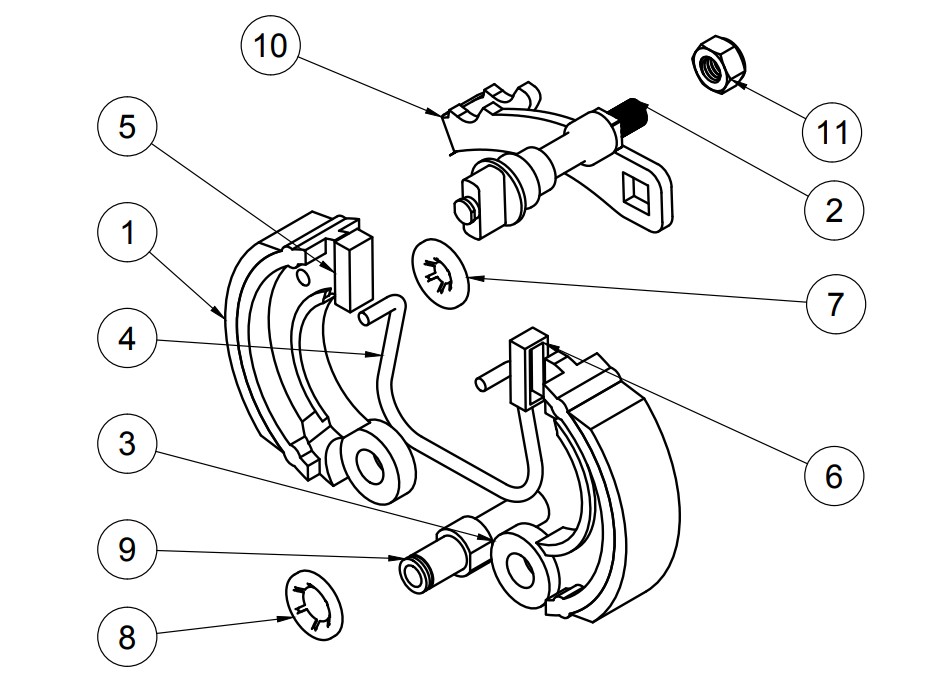

Exploded views
Exploded view drawings can show you the relationship between different components and how they fit together. It helps understand the order of assembly of the different parts. Below you can see different exploded views for “Front brakes” zone.
Maintenance safety notes
- Keep brake surfaces completely free of grease
- Use only stainless steel components to prevent rust
- Regular inspection of brake components is recommended
- Clean hands before handling brake components
- Test brake operation after maintenance
Component list
- Brake Block Assembly
- Lock Washers (Stern Washers)
- Must be stainless steel
- Single-use only
- Axle Components
- Brake Springs
- Protective Covers (Optional)
Recommended lubricants
- Copper grease (preferred for high-heat applications)
- Teflon spray (for axle components)
- Vaseline (alternative option)
Where you can order parts
You can order velomobile parts from dealers. Search your local or nearest dealer HERE.
Technical specifications and maintenance procedures are subject to updates. Always refer to the latest documentation for current information.
Need assistance? Contact us at sales@velomobileworld.com
