Alpha Series (A7, A9.2, M9, W9)
Alpha Series Rear Suspension
Here you can find technical support information for Alpha Series “rear suspension” parts. On this page you can see descriptions, exploded views, videos & more. If you have question do not hesitate to contact us, we would like to help you.
Velomobile
The Alpha W9s is here!
Originally conceived as an even slimmer version of the W9 for smaller and therefore less powerful riders, it even offers space for riders up to 1.83 m tall. This makes it a racing vehicle suitable for everyday use and the spearhead of the Alpha 9 Series, converting low power into high speed.
Videos
In this section we will add videos that can help you fixing various malfunctions for “Rear suspension” zone, maintenance videos or other kind of info that can make your velomobile experience great.
Rear Suspension: Polyurethane Foam Rings Replacement
Polyurethane Foam Ring Maintenance
The polyurethane foam rings in your rear suspension require periodic replacement as they compress over time. Without proper maintenance, your velomobile will gradually sit lower to the ground. These rings are economically priced and available through our website or authorized dealers.
Maintenance Procedure
The replacement process begins with the upper assembly, where you’ll find two contra-secured nuts preventing loosening from vibration. These require a 13mm wrench and socket or two 13mm wrenches for removal. Exercise caution when working with the plastic nuts, as overtightening can cause damage.
During disassembly, maintain slight pressure to generate friction while removing the second nut. Consult the exploded view diagrams for precise positioning, as workspace constraints may limit visibility during maintenance.
Height Adjustment
After installing new rings, measure the distance from the suspension to the ground. With GP5000 tires installed, this measurement should be approximately 7 centimeters. The adjustment mechanism includes threaded components with contra-tightened nuts. Proper contra-tightening prevents unwanted movement that could result in decreased ground clearance.
Component Configuration
The standard rear suspension utilizes 8 elastomers, though this number may vary based on user preferences and requirements. Riders seeking firmer suspension might opt for fewer elastomers. Three sizes are available to accommodate different weight ranges. Detailed size specifications and weight recommendations can be found through the dealer network.
Assembly Notes
During reassembly, ensure proper placement of all support rings and washers. The system uses contra nuts rather than Loctite, as adhesives are less effective on plastic components. Verify all components are properly secured and contra-tightened before completing the maintenance procedure.
Exploded views

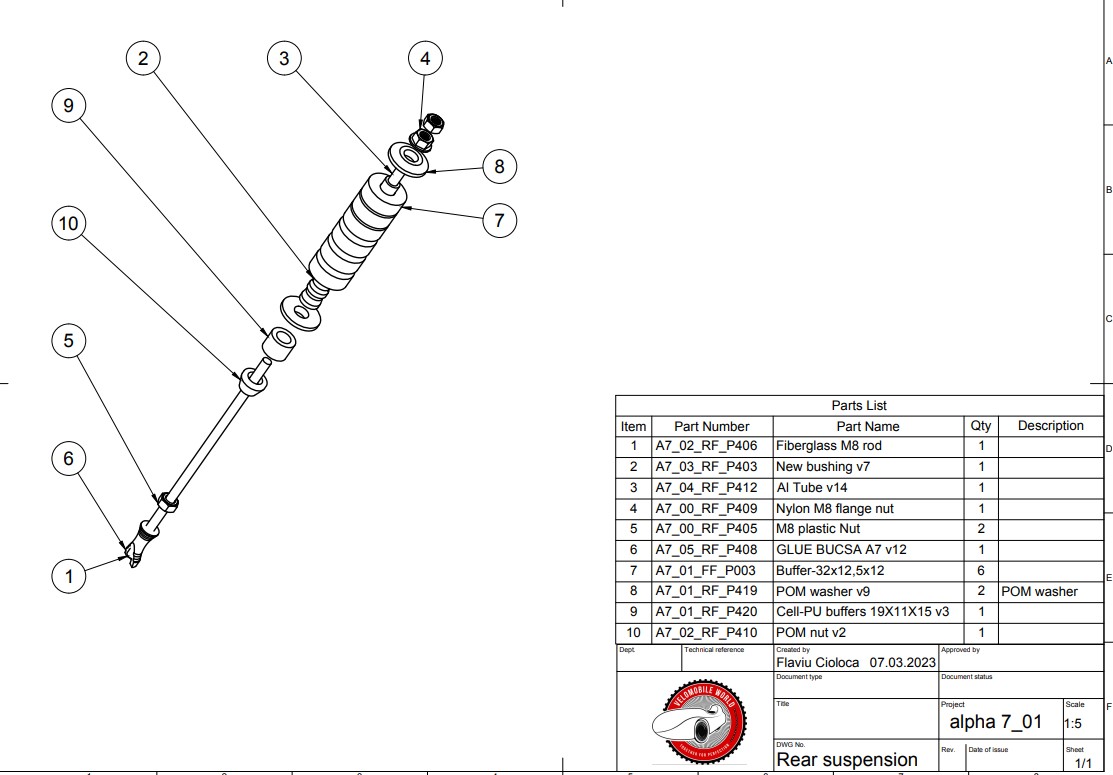

Exploded view drawings can show you the relationship between different components and how they fit together. It helps understand the order of assembly of the different parts. Below you can see different exploded views for “Rear suspension” zone.
Where you can order parts
You can order velomobile parts from dealers. Search your local or nearest dealer HERE.
Technical specifications and maintenance procedures are subject to updates. Always refer to the latest documentation for current information.
Need assistance? Contact us at sales@velomobileworld.com
