Alpha Series (A7, A9.2, M9, W9)
Alpha Series Wishbone
Here you can find technical support information for Alpha Series “Wishbone” parts. On this page you can see descriptions, exploded views, videos & more. If you have question do not hesitate to contact us, we would like to help you.
Videos
In this section we will add videos that can help you fixing various malfunctions for “Wishbone” zone, maintenance videos or other kind of info that can make your velomobile experience great.
Functions of the direction
Understanding Wishbone Components
The wishbone system consists of three main components: the longitudinal arm, the transverse arm, and the steering arm. Each component serves a specific purpose in maintaining proper wheel alignment and control.
Longitudinal Arm Maintenance
The longitudinal arm secures the wheel position and prevents forward and backward movement during braking. When maintaining the longitudinal arm, ensure the washers are properly tightened – they should be firm but still allow manual rotation. Over-tightening can create excessive tension and potentially lead to component failure during turns.
Transverse Arm Inspection
The transverse arm maintains the wheel’s lateral position. Regular inspection is crucial, particularly when purchasing a used velomobile or after encountering potholes. The arm should be straight and properly aligned. If bent, replacement is necessary. Standard M6 stainless steel rods are readily available at local suppliers for replacement.
Rod End Maintenance
The rod ends require periodic maintenance due to their zinc-plated steel construction. At least once yearly, remove the rod ends, apply fresh vaseline, and reinstall them. When reinstalling, apply vaseline inside the housing to prevent corrosion. The rod ends should have approximately 15-20 degrees of movement, and both ends must be properly aligned for correct operation.
Alignment Verification
After any maintenance work involving rod ends or other components, wheel alignment must be verified. Measure from the center of one tire to the center of the opposite tire, both at the front and rear of the wheels. Precise measurements ensure proper tracking and handling.
Exploded views

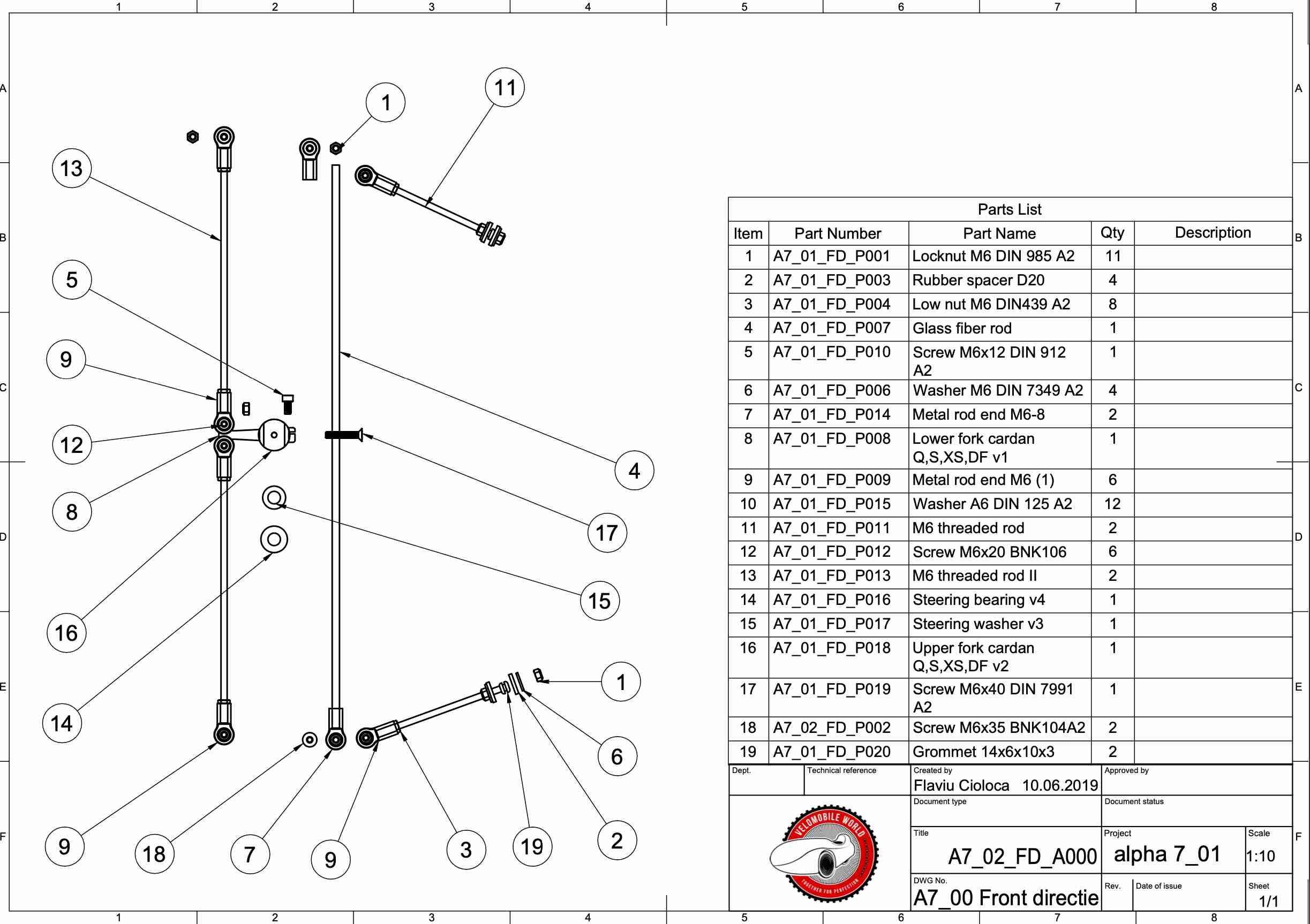

Exploded view drawings can show you the relationship between different components and how they fit together. It helps understand the order of assembly of the different parts. Below you can see different exploded views for “Wishbone” zone.
Where you can order parts
You can order velomobile parts from dealers. Search your local or nearest dealer HERE.
Technical specifications and maintenance procedures are subject to updates. Always refer to the latest documentation for current information.
