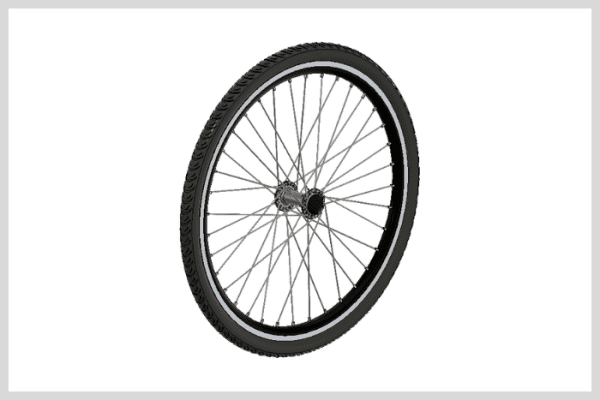

Quatrevelo Rear Wheel
Here you can find technical support information for Quatrevelo “rear wheel” parts. On this page you can see descriptions, exploded views, videos & more. If you have questions do not hesitate to contact us, we would like to help you.
Videos
The rear wheel requires regular spoke tension monitoring. The optimal tension range is 1000-1200 Newton (122 kg). Check spoke tension monthly using a calibrated tension meter, comparing measurements across different spokes to ensure uniform tension.
How we measure the spoke tension
Tuning the rear wheel

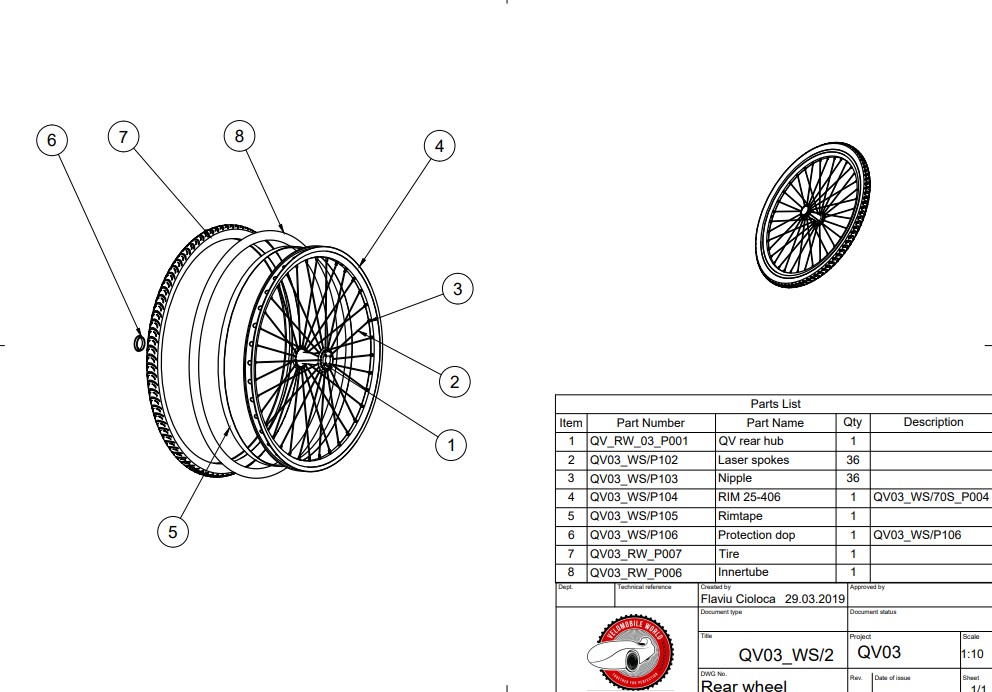

Exploded Views
Exploded view drawings can show you the relationship between different components and how they fit together. It helps understand the order of assembly of the different parts. Below you can see different exploded views for “Rear wheel” zone.
Where You Can Order Parts
You can order velomobile parts from dealers. Search your local or nearest dealer HERE.
Technical specifications and maintenance procedures are subject to updates. Always refer to the latest documentation for current information.
Need assistance? Contact us at sales@velomobileworld.com
